XQ1140 T4 Final - Diesel
XQ1140 Rental Power Generator Set.
Rental ready
Robust, durable product with a range of rental ready features to meet job requirements and applications.
Fuel/Emissions Strategy
Meets U.S. EPA Tier 4 Final emission standards and CARB certified for non-road mobile applications at all 60 Hz ratings.
Cat C18 Diesel Engines
Dual Cat C18 ACERT™ heavy-duty diesel engines.
Industry proven reliability.
CAT EMCP 4.4 Digital Controls
Dual EMCP 4.4 easy to use digital controls with manual and automatic paralleling capability.
Cat LC Series Generators
Class H Insulation.
Integrated voltage regular for fast response in demanding applications.
HMI Controls
Externally Mounted Color Touch-Screen HMI Control Center
Cat Connect
Remote monitoring for fleet management and asset tracking
Sound Attenuated Container
77 dBA @ 7m Sound Performance @ 75% Prime Load.
40' ISO high cube container, 9-high stack CSC certified Service and Personnel doors.
Externally-accessible controls
500 hr oil change intervals
Reducing operating costs and producing less waste
Reduced Environmental Impact
110% Spill Containment of On-Board Engine Fluids.
Factory designed, built and tested
Single-source Supplier
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Additional options
Two-axle, air-ride traler with anti-lock brakesystem
Extended Service interval kits
600V generator
Extended Service interval kits
600V generator
Generator Set
| Rating Prime | 910 ekW (1136 kVA) |
|---|---|
| Frequency | 60 Hz |
| Voltage | 120 - 600V |
| Rating Standby | 1000 ekW (1250 kVA) |
Engine
| Engine | Cat C18 |
|---|---|
| Fuel | Diesel |
Dimensions
| Height - Without Trailer | 2896mm114in |
|---|---|
| Length - Without Trailer | 12192mm480in |
| Width - Without Trailer | 2438mm96in |
| Weight with Lube Oil and Coolant, Without Trailer | 22728kg50107lb |
Fuel Consumption
| 100% Load 60Hz | 252l/hr66.4gal/hr |
|---|---|
| 75% Load 60Hz | 198l/hr52.4gal/hr |
| 50% Load 60Hz | 144l/hr38gal/hr |
| 100% Load 60Hz | 272l/hr71.8gal/hr |
| 75% Load 60Hz | 214l/hr56.6gal/hr |
| 50% Load 60Hz | 156l/hr41gal/hr |
Noise rating (with enclosure)
| Sound Power @ 7 meters (23 feet) @ All Ratings | 76 dB(A) |
|---|

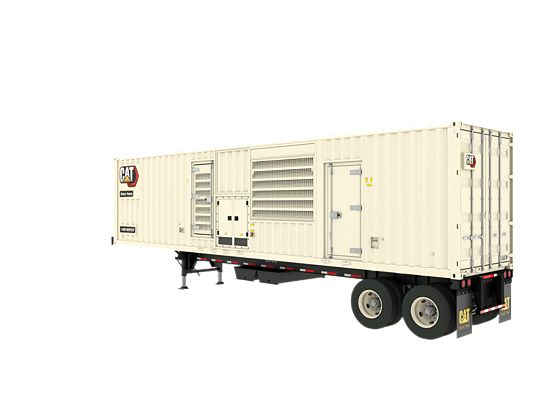

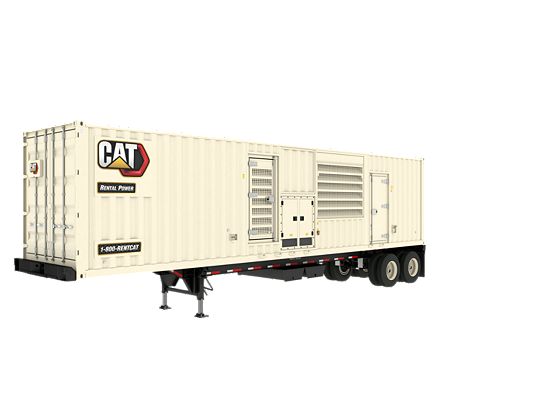

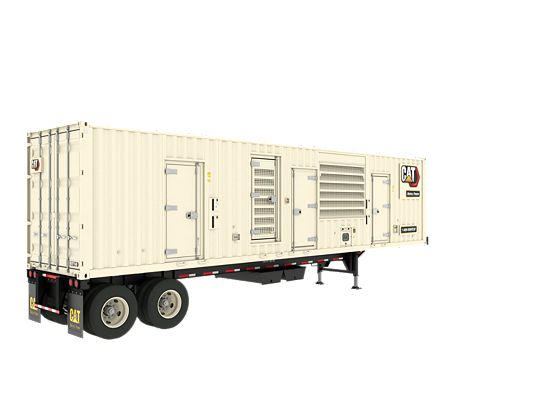

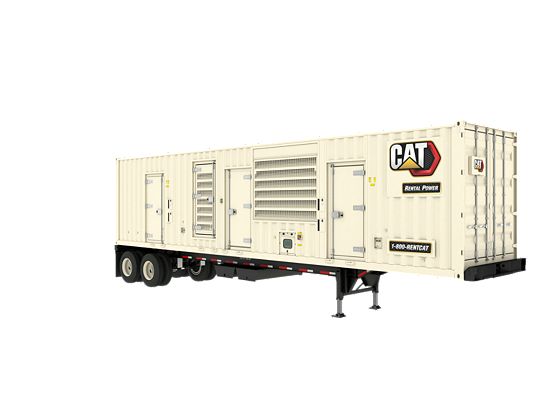

360° Exterior View
360° Exterior view. Double click on the image to zoom in on any area of the product.
