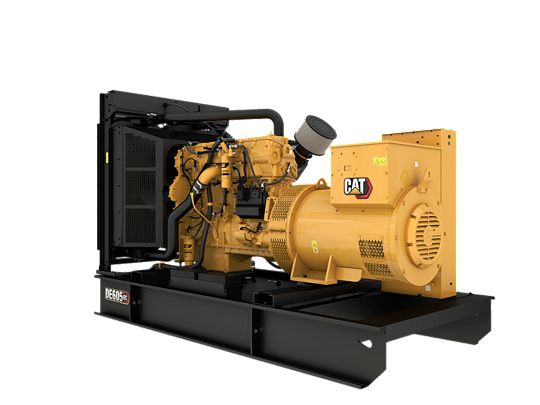

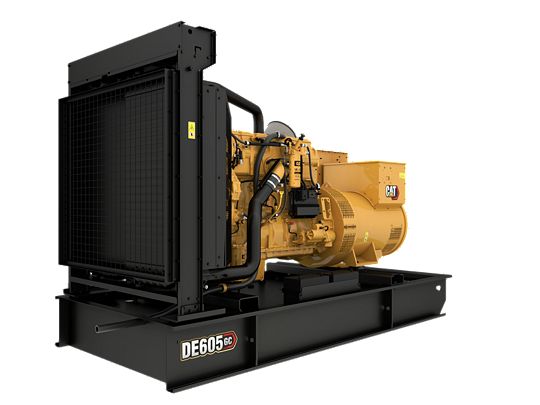

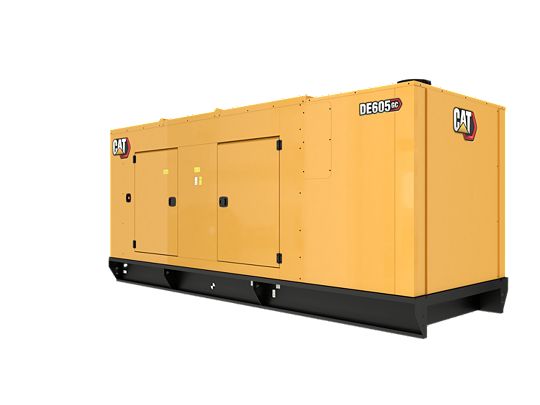

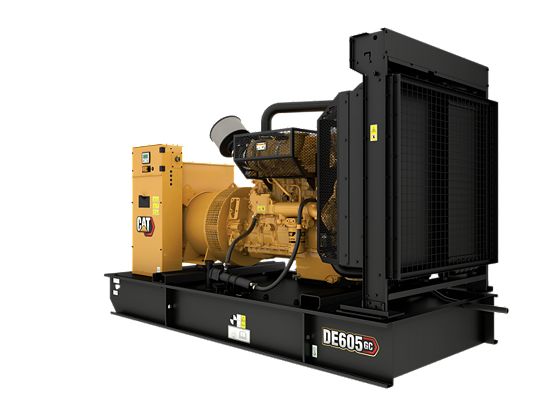

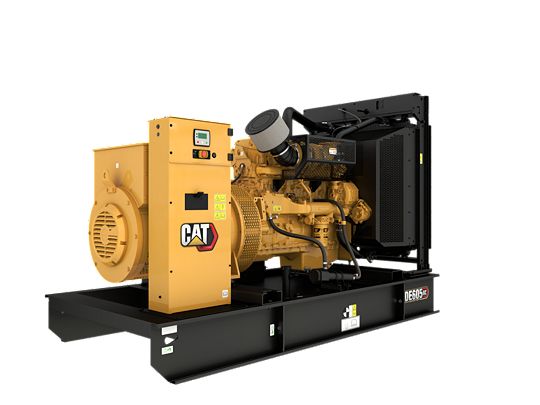

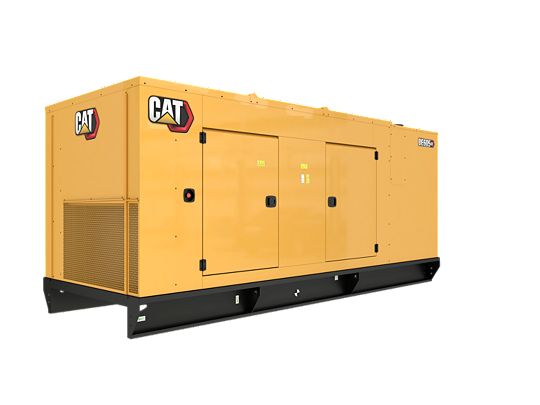

DE605 GC (50 Hz) Generator Set
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Maximum Rating | 605 kVA |
|---|---|
| Minimum Rating | 605 kVA |
| Emissions/Fuel Strategy | Non Regulated |
| Voltage | 380 to 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby |
Engine Specifications
| Engine Model | C15 In-line 6, 4-cycle diesel |
|---|---|
| Bore | 137mm5.4in |
| Stroke | 171mm6.8in |
| Displacement | 15.2l928in³ |
| Compression Ratio | 16.1:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Fuel System | EUI |
| Governor Type | Adem™A4 |
Generator Set Dimensions
| Length - Maximum | 3328mm131in |
|---|---|
| Width - Maximum | 1540mm60.6in |
| Height - Maximum | 2187mm86.1in |
| Dry Weight - Genset (maximum) | 3683kg8120lb |
360° Exterior View
360° Exterior view. Double click on the image to zoom in on any area of the product.
360° Interior View
360° Interior view. Double click on the image to zoom in on any area of the product.
