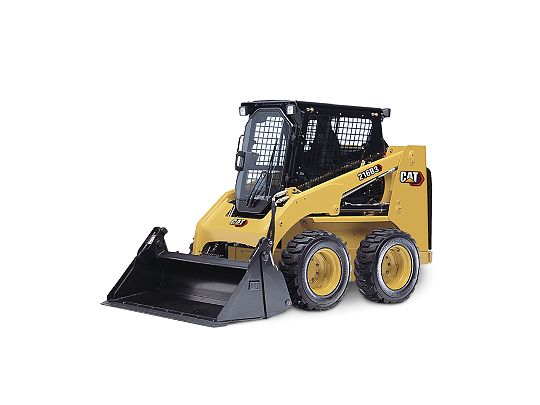

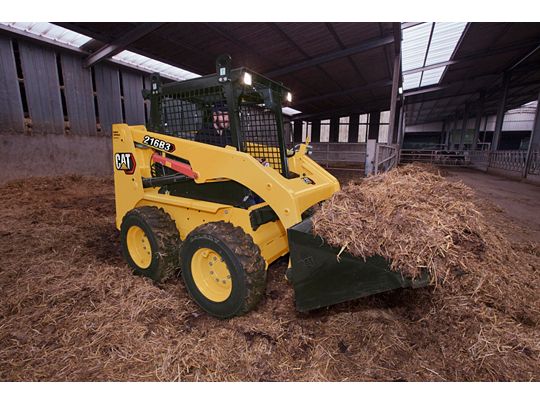

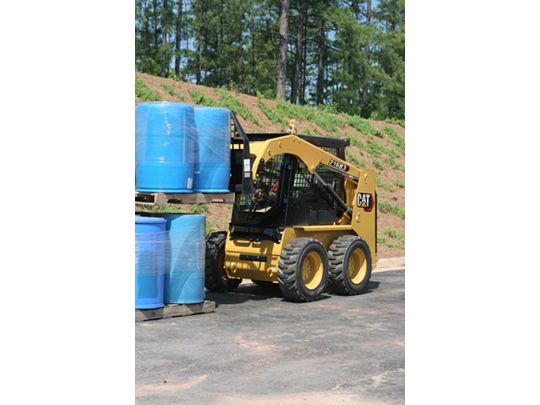

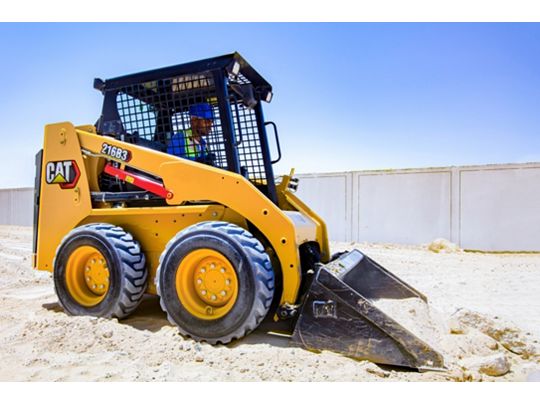

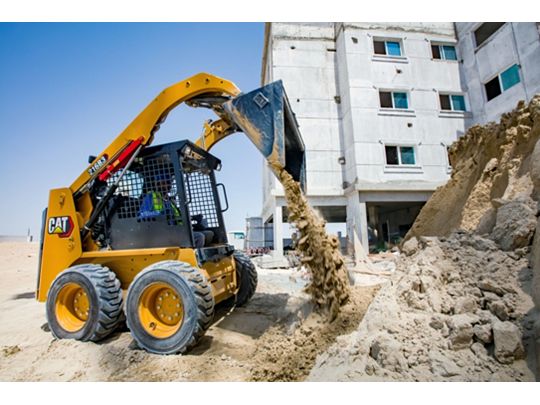

216B3 Skid Steer Loader

The Cat® 216B3 Skid Steer Loader, with its radial lift design, delivers excellent digging performance with outstanding drawbar power.

Documents




Compare




Ergonomic Operator Station

Ergonomic operator station features easy to use pilot operated joystick controls for reduced operator fatigue and increased productivity.

High Performance Power Train

High performance power train provides high engine horsepower and torque, allowing part-throttle operation for lower sound levels and fuel consumption.

Advanced Hydraulic System

Advanced hydraulic system is designed for maximum power and reliability.

Easy Maintenance

Easy routine maintenance helps reduce machine downtime for greater productivity.

Cat Work Tools

Broad range of performance matched Cat Work Tools make the Cat Skid Steer Loader the most versatile machine on the job site.

Engine

Gross Power - SAE J1995:201438kW51hp
Displacement2.2l134in³
Stroke100mm3.9in
Bore84mm3.3in
Engine ModelCat C2.2
Net Power - SAE 1349/ISO 924935kW47hp

Operating Specifications

Rated Operating Capacity635kg1400lb
Tipping Load1270kg2800lb
Breakout Force - Tilt Cylinder1852kg4083lb
Rated Operating Capacity with Optional Counterweight680kg1500lb
NoteOperating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Weights

Operating Weight2581kg5690lb
NoteOperating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Dimensions

Wheel Base986mm39in
Length - With Bucket on Ground3233mm127in
Length - Without Bucket2519mm99in
Height - Top of Cab1950mm77in
Vehicle Width over Tires1525mm60in
Ground Clearance195mm8in
Departure Angle26°
Maximum Dump Angle40°
Bucket Pin Height - Maximum Lift2854mm112in
Reach - Maximum Lift/Dump505mm20in
Turn Radius from Center - Machine Rear1502mm59in
Bucket Pin Height - Carry Position200mm8in
Bumper Overhang - Behind Rear Axle967mm38in
Turn Radius from Center - Bucket1944mm77in
Turn Radius from Center - Coupler1195mm47in
Maximum Reach with Arms Parallel to Ground1291mm51in
Clearance at Maximum Lift and Dump2169mm85.4in
Maximum Overall Height3709mm146in
NoteOperating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).
Rack Back Angle - Maximum Height81°

Cab

ROPSSAE J1040 MAY94, ISO 3471:1994
FOPSSAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
FOPS Level IISAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II (optional)

Service Refill Capacities

Chain Box - Each Side6l1.6gal (US)
Cooling System10l2.6gal (US)
Engine Crankcase10l2.6gal (US)
Fuel Tank58l15.4gal (US)
Hydraulic System55l14.5gal (US)
Hydraulic Tank35l9.2gal (US)

Hydraulic System

Hydraulic Flow - Standard - Hydraulic Power (Calculated)23.2kW31.1hp
Hydraulic Flow - Standard - Loader Hydraulic Pressure23000kPa3335psi
Hydraulic Flow - Standard - Loader Hydraulic Flow61L/min16gpm

Power Train

Travel Speed - Forward or Reverse12.7km/h7.9mile/h
