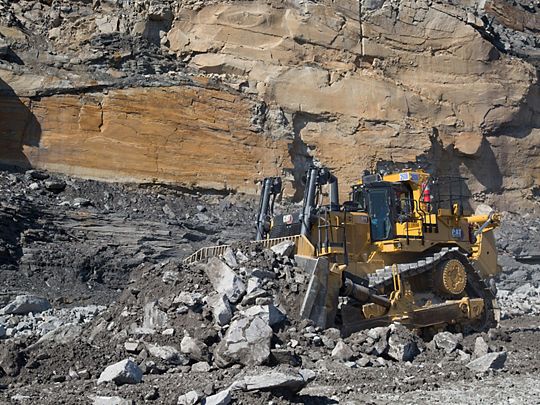

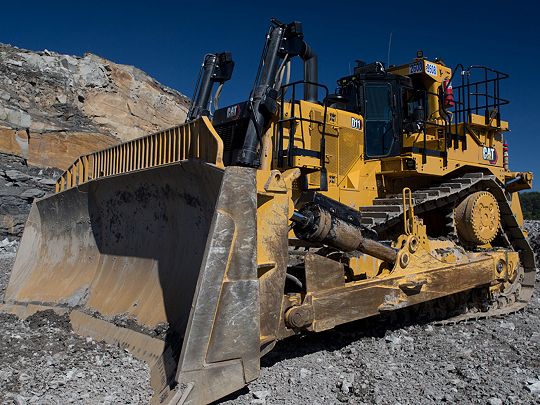

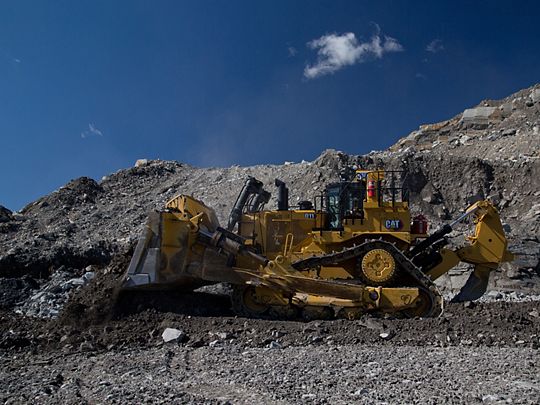

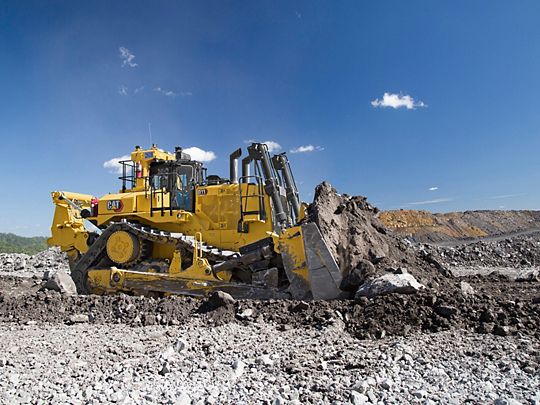

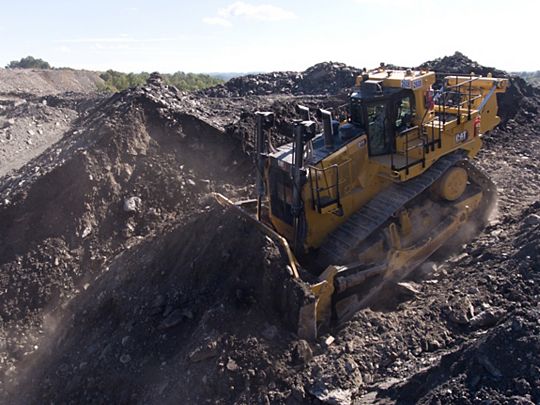

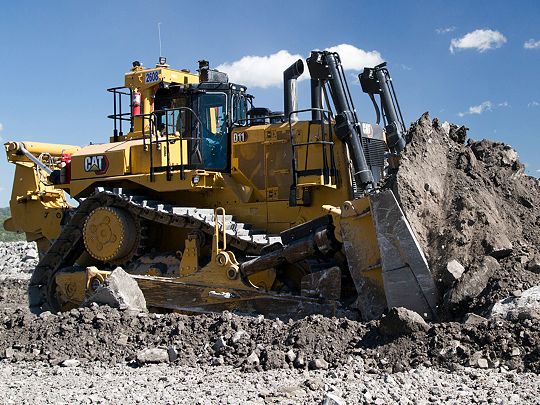

D11 Dozer
The Cat ® D11 Dozer delivers higher productivity at lower cost — for a reduction of up to 6% in overall cost per bank cubic meter compared to the previous model. Infused with performance-enhancing features, the D11 helps you improve the efficiency of your dozing operation. The torque divider with stator clutch automatically frees up the stator when torque is not required, delivering higher drivetrain efficiency for reduced fuel consumption. High-horsepower reverse speeds up non-productive traveling to reduce cycle time, while load-sensing hydraulics deliver more power to the dozer, increasing responsiveness and boosting fuel efficiency. Advanced technologies are completely integrated into the dozer, creating smart machines and more informed operators to maximize the productivity of your operation.
Documenten
PERFORMANCE & EFFICIENCY
- The torque divider with stator clutch automatically frees up the stator when torque is not required, delivering higher drivetrain efficiency for reduced fuel consumption.
- High-horsepower reverse speeds up non-productive traveling for faster cycle times and up to 8% higher productivity.
- The high-efficiency load-sensing hydraulic system improves hydraulic implement response and fuel efficiency.
- The in-cab multifunction touchscreen display is the operator’s gateway to monitoring machine performance and a convenient way to modify machine parameters to tailor performance to the current task.
OPERATOR COMFORT
- The cab is unparalleled, with enhanced ergonomics, a fully adjustable air suspension seat, and controls that are easy to access and operate.
- The suspended undercarriage absorbs impact and reduces the shock loads transferred to the undercarriage by up to 50% — resulting in a smoother, more comfortable ride.
- Low-effort electronic steering, ripper and dozer controls are easily accessible and provide sure, precise maneuvering.
- The standard isolation-mounted cab reduces noise and vibration, and conveniently located air circulation vents evenly distribute airflow for maximum comfort.
SAFETY
- The operator station offers exceptional visibility, with strategically located mirrors, clean line of sight to front and rear work areas, plus an optional 360 vision system for a bird’s-eye view.
- The powered access ladder improves access and egress and has been updated with engine-off raise and lower capability. The cab door swing option allows left- or right-side opening.
- Access lighting can be controlled from the cab or the ground-level electrical center. Delayed egress lighting allows exiting the machine with lighting.
TECHNOLOGY & INNOVATION
- Automated Blade Assist (ABA) comes standard with the dual-tilt feature, automating the movement of the blade to several key preset pitch positions.
- AutoCarry™ (optional) provides automatic blade control during the carry segment, helping to keep slip at the optimum level for best performance — increasing productivity up to 15%.
- Automatic Ripper Control (optional) automatically adjusts the engine speed and ripper depth to minimize track slip, reducing operator fatigue and decreasing wear and tear on the machine.
- Cat Grade with 3D provides precise positioning of the cutting edge, eliminating the need for masts and cables on the blade. The system also reduces the need for grade staking and grade checking.
CAT MINESTAR™ SOLUTIONS
- The D11 comes out of the factory ready to integrate Cat MineStar™ technology, which takes accuracy, efficiency and safety even further.
- MineStar Command for dozing offers multiple levels of remote control and even semiautonomous operation, helping increase operator safety and comfort—as well as the productivity of the dozer fleet.
- MineStar Terrain’s Automatic Blade Control feature provides full automatics, full blade load and overcut protection integrated into the machine control system.
- MineStar Terrain for grading monitors ore bodies, bench heights, cycle times and volume of material cut and filled. Inputs from the office tell operators where to dig or cut, how much material to move, when they’ve moved enough and even if they’ve moved too much.
SERVICEABILITY
- The AutoLube system, with ground-level fill and automatic shut-off capability, reduces daily maintenance.
- Grouped maintenance points minimize movement around the machine, and ground-level access enables easier service for fluids and key electrical controls.
- A 30% larger oil sump capacity extends 500-hour planned maintenance intervals and single-cooling system is easier to clean.
- Redesigned pin joints eliminate the need for line boring and simplify replacement of the bearing inserts on the blade ripper and push-arm trunnions.
- Continuous fluid monitoring on all compartments, including direct fluid monitoring of the hydraulic tank and pivot shaft reservoir, improves service life.
BLADES & ATTACHMENTS
- Cat blades offer superior loadability and are aggressive in tough materials. The D11 features a 29.3° interior angle between the back bottom of the blade and the ground. This clearance angle allows the blade to better penetrate and load.
- Cat blades have the ability to resist torsional bending and distortion and offer increased wear resistance without sacrificing machine balance or performance.
- Specialty blades include high-capacity blades for light materials, including coal blades and reclamation blades.
- Specialty attachments include multi-shank leach pad ripper, and multi-shank coal ripper (five shank), counterweight and rear drawbar with counterweight.
BUILT TO GO THE DISTANCE
- The D11 is built to go the distance, with a redesigned case and frame for longer life, a larger equalizer bar with improved bearing, robust track roller frame, ripper and blade pin bores with replaceable bearings and replaceable push-arm trunnion bearing inserts.
- The robust variable piston pumps for the new load-sensing hydraulic system run cooler for longer component and seal life.
- Powertrain and main components are built to be rebuilt for a cost-effective second life of like-new performance at a fraction-of-new price.
SUSTAINABILITY
- The D11 is designed to use less fuel, which reduces engine emissions.
- The Tier 4 Final engine reduces NOx and particulate matter, plus the engine is compatible with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels.
- Features like extended life filters and longer maintenance intervals decrease the amount of waste contributed to the environment.
- By rebuilding machines and components, the Cat Rebuild and Cat Reman programs preserve raw materials, conserve energy and reduce emissions. In addition, retrofits and upgrades for older machines incorporate efficiency improvements and emission reductions, and keep them in production longer to conserve energy and minimize the need for raw materials.
- Increased commonality of systems and components, plus a reduction in unique part numbers, reduces waste and lowers owning and operating costs.
Engine - U.S. EPA Tier 4 Final/EU Stage V
| Engine Model | Cat® C32 |
|---|---|
| Engine Power - Net SAE J1349/ISO 9249 - Forward | 634kW850hp |
| Displacement | 32.1l1959in³ |
| Engine Power - Net SAE J1349/ISO 9249 - Reverse | 712kW955hp |
| Note (1) | *Excludes all fan losses. |
| Note (2) | Engine ratings apply at 1,800 rpm. |
| Note (3) | Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required. |
Weights
| Operating Weight | 104236kg229800lb |
|---|---|
| Operating Weight - Carrydozer | 113700kg250665lb |
| Note (1) | D11 Operating Weight: Includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator. |
| Note (2) | D11 CD Operating Weight: Includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, singleshank ripper, and operator. |
Blades
| Semi-Universal (SU)* Capacity | 27.2m³35.6yd³ |
|---|---|
| Semi-Universal (SU)* Width Over Endbits | 5584mm219.8in |
| U-Blade Capacity | 34.4m³45yd³ |
| U-Blade Width | 6340mm249.6in |
| Reclamation Universal - Blade capacity (SAE J1265) | 42m³55yd³ |
| Reclamation Universal - Width with blade (over end bits) | 6395mm251.8in |
| Carry Dozer - Blade capacity (SAE J1265) | 43.6m³57yd³ |
| Carry Dozer - Width with blade (over end bits) | 6704mm263.9in |
Engine - U.S. EPA Tier 2 Equivalent
| Engine Model | Cat® C32 |
|---|---|
| Displacement | 32.1l1959in³ |
| Engine Power - Net SAE J1349/ISO 9249 - Forward | 634kW850hp |
| Engine Power - Net SAE J1349/ISO 9249 - Reverse | 714kW957hp |
| Note (1) | *Excludes all fan losses. |
| Note (2) | Engine ratings apply at 1,800 rpm. |
| Note (3) | Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required. |
Fuel Tank Capacities
| Fuel Tank - Total Volume | 1895l500gal (US) |
|---|---|
| Fuel Tank - Usable Volume | 1800l475gal (US) |
Hydraulic Controls
| Pump Type | Variable displacement piston pump |
|---|---|
| Combined Pump Output - Implement | 670l/min177gal/min |
Undercarriage
| Shoe Type | Extreme Service |
|---|---|
| Width - Shoe | 710mm28in |
| Width - Shoe - CD | 915mm36in |
| Shoes/Side | 41 |
| Grouser Height | 102mm4in |
| Pitch | 318mm12.5in |
| Ground Clearance* | 777mm30.6in |
| Track Gauge | 2896mm114in |
| Length - Track on Ground | 4444mm175in |
| Ground Contact Area | 6.3m²9781in² |
| Ground Contact Area - CD | 8.1m²12605in² |
| Track Rollers/Side | 8 |
| Number of Carrier Rollers | 1 per side (optional) |
Transmission
| 1.0 Forward | 4km/h2.5mile/h |
|---|---|
| 2.0 Forward | 7km/h4.4mile/h |
| 3.0 Forward | 12.2km/h7.6mile/h |
| 1.0 Reverse | 4.8km/h3mile/h |
| 2.0 Reverse | 8.5km/h5.3mile/h |
| 3.0 Reverse | 14.7km/h9.1mile/h |
| Drawbar Pull - 3 Forward | 205.8kN46250ft·lbf |
| Drawbar Pull - 1 Forward | 659.2kN148200ft·lbf |
| Drawbar Pull - 2 Forward | 366.1kN82300ft·lbf |
Ripper - Single Shank
| Maximum penetration force * (shank vertical) | 294kN66000lb |
|---|---|
| Maximum penetration depth (standard tip) | 1612mm63.5in |
| Pryout Force | 661kN148510lb |
Ripper - Single Shank, Deep Ripping
| Maximum penetration force * (shank vertical) | 294kN66110lb |
|---|---|
| Maximum penetration depth (standard tip) | 2172mm85.5in |
| Pryout Force | 661kN148510lb |
Ripper - Multi-Shank, Adjustable Parallelogram
| Overall Beam Width | 3330mm131.1in |
|---|---|
| Maximum Penetration Force - Shank Vertical | 344kN77350lb |
| Maximum Penetration - Standard Tip | 1100mm43.3in |
| Pry-Out Force - Multi-Shank Ripper with One Tooth | 648kN145640lb |
Dimensions - D11 Carrydozer
| Width at Outside of Track (710 mm Track Shoe) | 3806mm149.8in |
|---|---|
| Length with SU-Blade** - No rear attachment | 8765mm345.1in |
| Overall Length SU-Blade and SS Ripper** | 10712mm421.7in |
Service Refill Capacities
| Cooling System | 177l46.8gal (US) |
|---|---|
| Cooling System Refill - Tier 2 Equivalent Engine | 158l41.7gal (US) |
| Engine Crankcase | 133l35.1gal (US) |
| Power Train | 454l120gal (US) |
| Power Train - Refill Volume | 391l103.3gal (US) |
| Final Drive - Each | 47l12.4gal (US) |
| Roller Frames - Each | 94l24.8gal (US) |
| Hydraulic Tank | 160l42.2gal (US) |
| Hydraulic System Tank and Chassis | 245l64.7gal (US) |
| Hydraulic System Chassis + Blade and Ripper (Standard) | 445l117.6gal (US) |
| Hydraulic System Chassis + Blade and Ripper (Carrydozer) | 540l143.4gal (US) |
Standards
| ROPS | Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008 |
|---|---|
| FOPS | Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II |
| Sound (1) | The exterior sound pressure level for the standard machine (ISO 6396:2008) is 116 dB(A) (sound suppressed). |
| Sound (2) | The operator equivalent sound pressure level (ISO 6396:2008) is 78 dB(A) (sound suppressed). |
Dimensions - D11
| Ground Clearance* | 798mm31.4in |
|---|---|
| Track Gauge | 2896mm114in |
| Width at Outside of Track (710 mm Track Shoe) | 3606mm142in |
| Height (ROPS/canopy)* | 4723mm185.9in |
| Length of Track on Ground | 4444mm175in |
| Length with SU-Blade** - No rear attachment | 8579mm337.8in |
| Overall Length SU-Blade and SS Ripper** | 10525mm414.4in |
| Note | *Includes grouser height for total dimensions on hard surfaces. |
Air Conditioning System
| Note (1) | The air conditioning system on this machine contains the flourinated greenhouse gas refrigerant R134a (Global Warning Potential = 1430). The system contains 2.1 kg (4.6 lb) of refrigerant which has a CO2 equivalent of 3.003 metric tonnes (3.31 tons) |
|---|
